Dump cans are used in motorsports when quick refueling pit stops are essential. Depending on the configurations below, these dump cans can fill up to 14 times faster than a standard fuel jug.

This dump can assembly includes a Radium Engineering dry break probe compatible with 1.5" dry break receptacles. The short tube is clear for fuel fill monitoring. The new PRV (pressure relief valve) feature permits the sealed side of the dump can to be vented when exposed to warm temperatures. To purge air pressure, simply push down on the center stainless steel valve.

This dump can features knurled aluminum pour and vent caps. And because these unscrew, filling the dump can is a quick efficient process.

The vent cap features 6 different fuel type indicators: (UNLEADED, LEADED, METHANOL, ETHANOL, PRE-MIXED, DIESEL). The small knob can be screwed into the appropriate threaded hole to mark the fuel type inside. For a slower and more controlled filling, the plastic flip cap can be simply unlatched. For quicker filling, the entire vent cap can be unscrewed. Use this method with caution.

NOTES

The plastic pour spout can be cut to suit 2.5" and 3" dry breaks
For maximum flow efficiency, the fuel tank (or fuel cell) should have a large vent (see Radium P/N: 20-0535)

Vent open vs. Vent cap removed

The main difference between a "dump can" and a common "fuel jug" is the vent architecture. For quick filling, air entering the can must replace the exiting fuel at the same rate. If not, a vacuum will create a flow restriction and produce a "gurgle" or "chug" effect. These Radium Engineering dump cans are designed with a large 1.675" OD vent tube that comes from the bottom, minimizing refueling leaks and maximizing non restrictive air flow for quick-filling.

NOTE: The large vent tube can also be used for re-filling the dump can.

Accurate graduation marks are molded in "US GALLONS" on one side, and "LITERS" on the opposite side.

The dump cans are molded from a durable polymer safe for all fuel types (leaded gas, unleaded gas, diesel, AV gas, methanol, ethanol, E15, E85, etc.). The external rectangular shape was designed to match the common fuel jug industry standard (9.5" x 9.5"). This allows for easy securing and storing with other fuel jugs. The integrated vent handle has finger grips for comfort. In addition, a similar ergonomic feature is molded into the bottom (shown below) for ease of handling when the dump can is inverted.

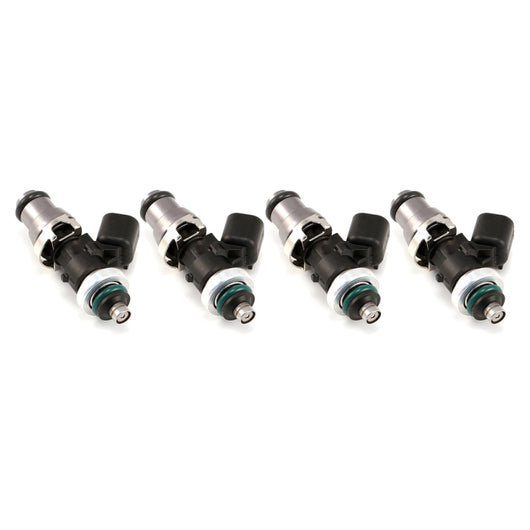

Injector Dynamics 1340cc Injectors-48mm Length-14mm Grey Top-14mm L O-Ring(R35 Low Spacer)(Set of 4) - 1300.48.14.R35.4
